Panasonic Workio DP-1820P error code E02-01 solution

These instructions describe error code E2-01, E2-02, E2-03, and E2-04 solution for a Panasonic Workio DP-1520p, DP-1820P copier machine.

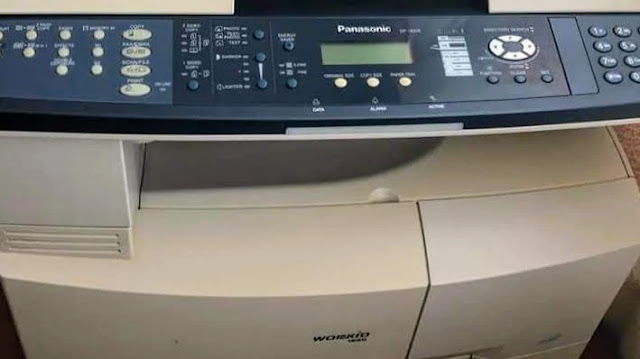

Panasonic Workio DP-1820P error code E02-01

Panasonic Workio DP-1820P error code E02-01 solution

These instructions describe error code E02-01 solution for a Panasonic Workio DP-1520p, DP-1820P copier machine. This should solve your problem; this introduction will help you to troubleshoot some common error messages related to Panasonic Workio DP-1520p, DP-1820P Error Code E2-01, E2-02, E2-03, and E2-04 that you may receive.

Meaning of E02-01 the Error Code:

E02-01 means the Tray 1 cassette lifting motor unit fault. These machines use a lift motor encased in a plastic drive gear casing. Usually something inside the casing breaks, this usually happens in trays that have Ledger or Legal paper installed. The weight of the paper can cause these gear packs to break. Also if the customer loads letter paper in a tray set up for larger paper sizes.

How to fix the error:

Maybe a problem with tray 1 lift motor either you have a bad motor, Pull the paper tray out and see if the paper is lodged behind the tray, Also make sure the white coupling on the rear wall is in one piece. Check that the flag on the back of the tray is still present. Mostly it is broken and sometimes can be repaired, and otherwise, you have to change it, and to open the back cover and reach that (Part no is (DZTY000357 Paper Lift Motor Assembly, lift up drive).

Some of the possible cause:

• Remove the tray and check for paper behind the tray.
• Check paper falls back causing the gears to break.
• Check cassette Lift Motor connector.
• Replace the Tray 1 lift motor.
• Check the Mainboard.
